Semantic Linking: Adding Meaning to Your Data

Reading time: ~6 minutes | Level: Intermediate Prerequisites: Walkthrough 4: Understanding Components and Data Types

What You'll Learn

• What semantic linking is and why it matters
• How RDF predicates and objects work
• How to use the Semantic Linking step in the wizard and edit forms
• How to search for vocabulary terms using the Google search button
• How ontology uploads improve AI processing

What is Semantic Linking?

Semantic linking connects your data components to universal vocabularies and ontologies. Without it, a field labeled "status" is ambiguous: it could mean account status, order status, or health status. With semantic linking, that field is explicitly tied to a specific concept in a recognized vocabulary:

Component: "Account Status"
  → rdf:type → schema.org/accountStatus

Now any system that reads the model knows exactly what "status" means, regardless of what the field is named locally.

Why It Matters

• Interoperability: Systems can automatically understand your data without custom mappings
• AI quality: SDCStudio's AI uses semantic links to make better suggestions
• Standards compliance: Links to recognized vocabularies (SNOMED, LOINC, schema.org) ensure your model follows industry standards
• Output richness: Semantic links flow into JSON-LD, RDF triples, and SHACL outputs

RDF Predicates and Objects

Semantic links use the predicate-object pattern from RDF (Resource Description Framework):

• Predicate: The relationship type (e.g., rdf:type, skos:exactMatch, rdfs:subClassOf)
• Object: The target concept (e.g., schema.org/email, SNOMED:271649006)

Together, they form a statement about your component:

[your component] --predicate--> [ontology concept]

Example:
  customer_email --rdf:type--> schema:email
  blood_pressure --skos:exactMatch--> SNOMED:271649006
  order_total    --rdf:type--> schema:Price

Common Predicates

Using the Semantic Linking Step

The Semantic Linking step appears in both the creation wizard (Step 5 of 6) and the edit form (Step 4 of 5 for data types, Step 3 of 4 for clusters).

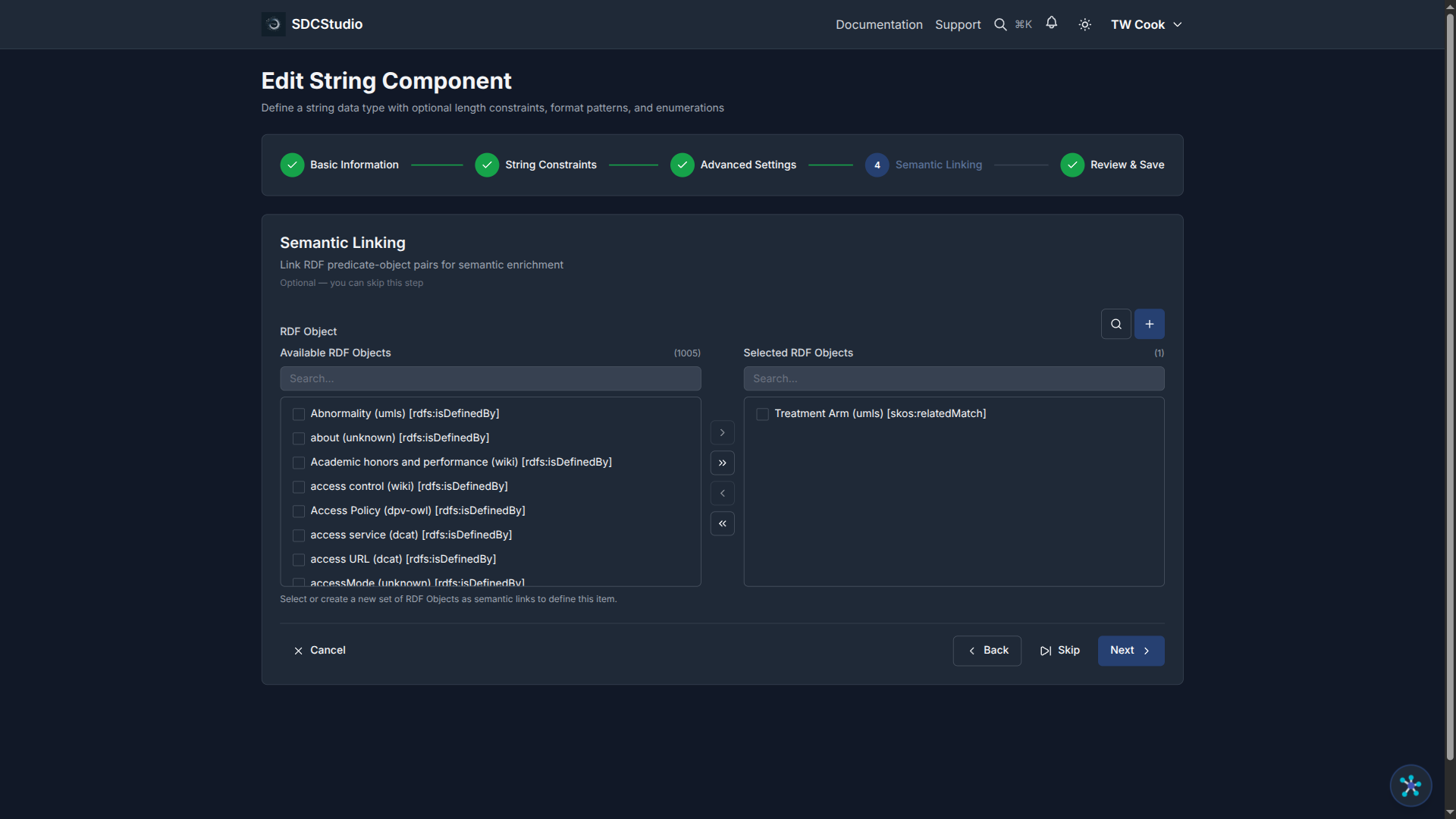

The TransferList

The step uses a TransferList, the same dual-pane selector used in cluster component selection:

• Left pane: Available predicate-object pairs that have been defined in the system
• Right pane: Pairs currently linked to this component

To add a semantic link: 1. Find the desired predicate-object pair in the left pane 2. Select it 3. Move it to the right pane

To remove a semantic link: 1. Select the pair in the right pane 2. Move it back to the left pane

Creating New Predicate-Object Pairs

If the pair you need does not exist yet, create it from the component's edit form (the creation wizard cannot):

1. In the Semantic Linking step, click the + button (Create new RDF Object)
2. In the Create New RDF Object dialog, enter a Name (a human-readable name)
3. Choose a Predicate from the list
4. Enter the Object URI (the ontology concept's IRI)
5. Tick Is Public? if other modelers should be able to use it, and click Create RDF Object; it is added to the list for selection

The Google Vocabulary Search Button

In the edit form's Semantic Linking step, a Search Google for controlled vocabularies button (magnifying glass icon) opens a Google search built from your project's name, the component's label and description, and the terms "ontology vocabulary IRI" with schema.org, Wikidata, Dublin Core, FOAF and SKOS as the suggested sources. The creation wizard does not have the button; finish the wizard and open the component's edit form.

This is useful when you know what concept you need but are not sure which ontology contains it or what its exact URI is. Search, find the concept, copy the URI, and paste it into the object field.

How Ontologies Improve AI

When you upload ontologies on the Ontologies page and set them as Preferred Ontologies in Settings before processing data files, the pipeline uses them during Stage 2 (AI Enhancement):

Without ontologies: The AI makes generic type and validation suggestions based on column names and data patterns.

With ontologies: The AI matches columns to your ontology concepts, producing: - Domain-specific labels and descriptions - More accurate type selection - Richer validation rules - Pre-populated semantic links

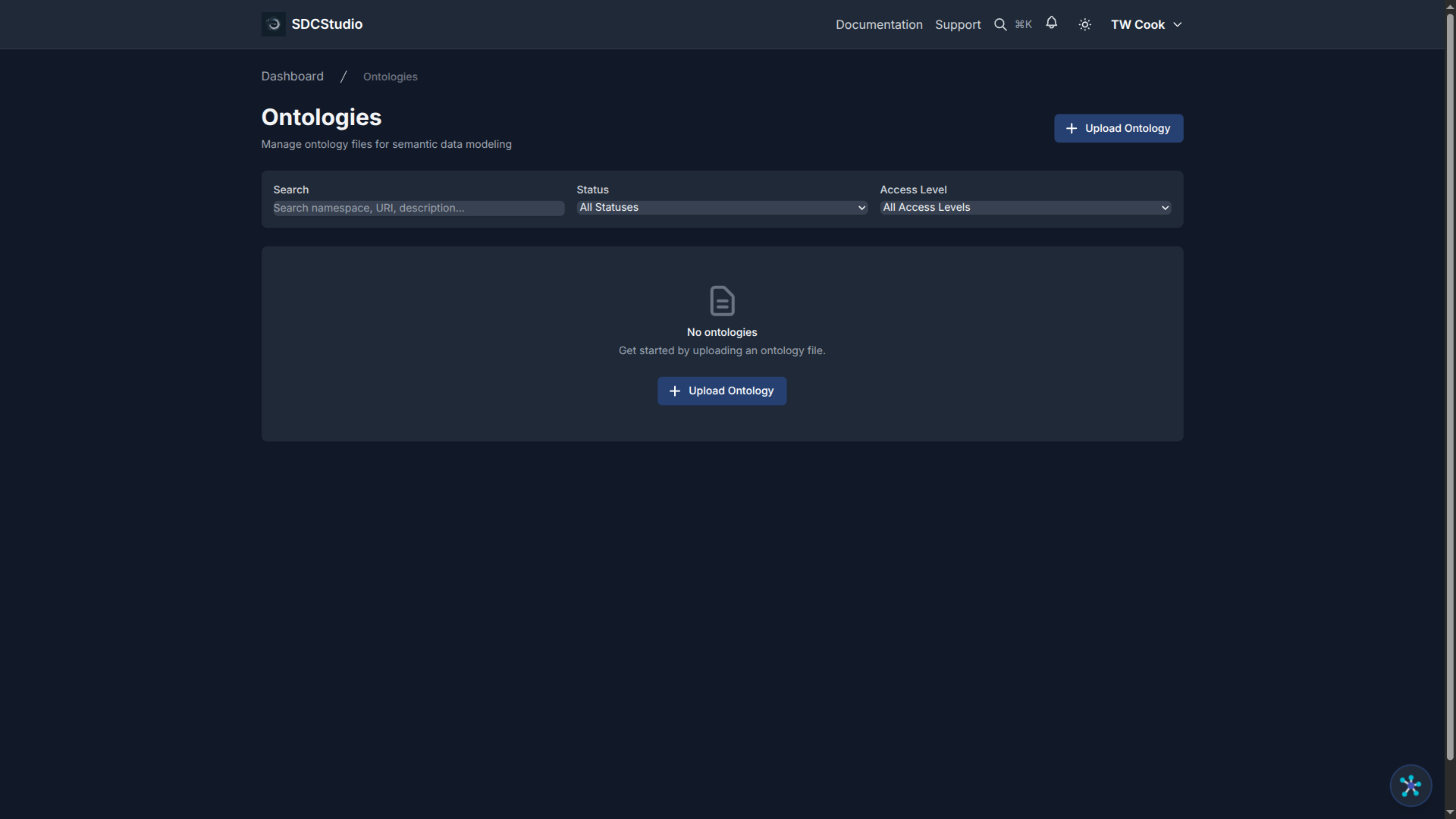

Uploading Ontologies

1. Open Ontologies at /app/ontologies (also reached from Manage Ontologies under Settings → Preferences)
2. Click Upload Ontology
3. Select a file in Turtle (.ttl), OWL (.owl), RDF (.rdf), N3 (.n3), or N-Triples (.nt) format
4. Enter the namespace abbreviation and URI
5. Click Upload Ontology

SDCStudio itself bundles no ontologies: semantic linking draws on the ontologies that have been uploaded. The Ontologies page lists the ones you uploaded, the ones your teammates shared at Team or Corporate level, and every ontology uploaded as Public. Upload the vocabularies your domain needs that are not already there.

Practical Examples

Healthcare: Blood Pressure Component

Component: "Systolic Blood Pressure" (XdQuantity, units: mmHg)
Semantic links:
  rdf:type       → LOINC:8480-6  (Systolic blood pressure)
  skos:exactMatch→ SNOMED:271649006

E-Commerce: Product Price Component

Component: "Unit Price" (XdQuantity, units: USD)
Semantic links:
  rdf:type       → schema:price
  dct:subject    → GoodRelations:UnitPriceSpecification

General: Email Component

Component: "Contact Email" (XdString, pattern: email regex)
Semantic links:
  rdf:type       → schema:email
  skos:closeMatch→ vcard:hasEmail

Tips

Start with rdf:type: If you are unsure which predicate to use, rdf:type ("is a") is almost always the right starting point.

Link the most important components first: You do not need to semantically link every component. Focus on the core domain concepts that will benefit most from interoperability.

Use the same vocabulary consistently: If you use schema.org for one component, use it for related components too. Mixing vocabularies for the same domain creates unnecessary complexity.

Semantic linking is optional but valuable: Your model works without semantic links, but the JSON-LD, RDF, and SHACL outputs will be significantly richer when links are present.

Summary

• Semantic linking connects your components to universal vocabularies using RDF predicate-object pairs
• The TransferList lets you select existing pairs or create new ones
• The Google search button helps you find the right ontology concept
• Uploading ontologies before data processing improves AI suggestions
• Focus on rdf:type and core components first

Next walkthrough

Publishing and Generating Outputs: learn the publication workflow and how to generate your final output files.
